EDGE Series Security Box II - Setup & Use

Not sure if this is your device? This article is for the EDGE Series Security Box II (SKU/Product #: MMA-14288). Double-check this info or visit our "Identify My Device" page before you continue.

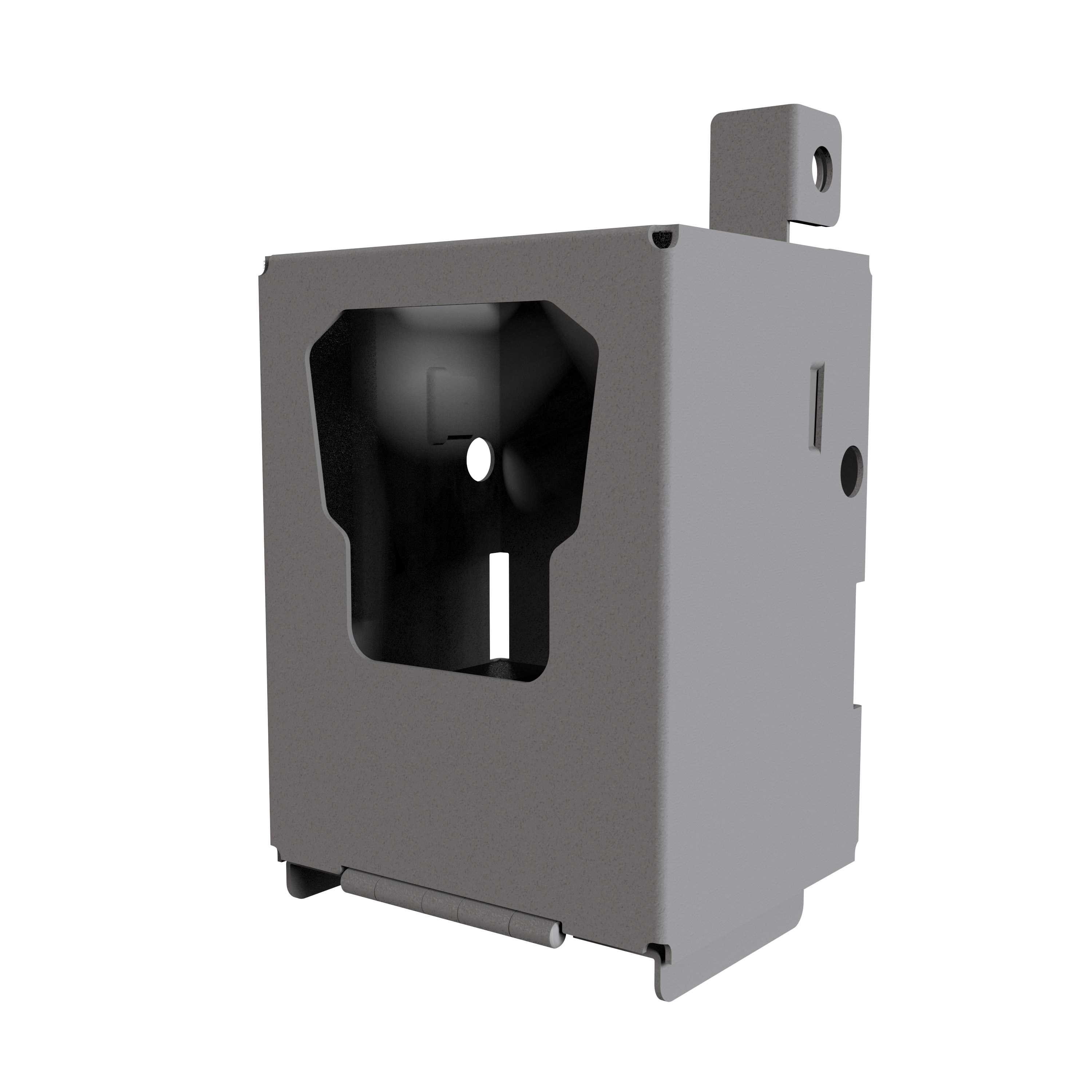

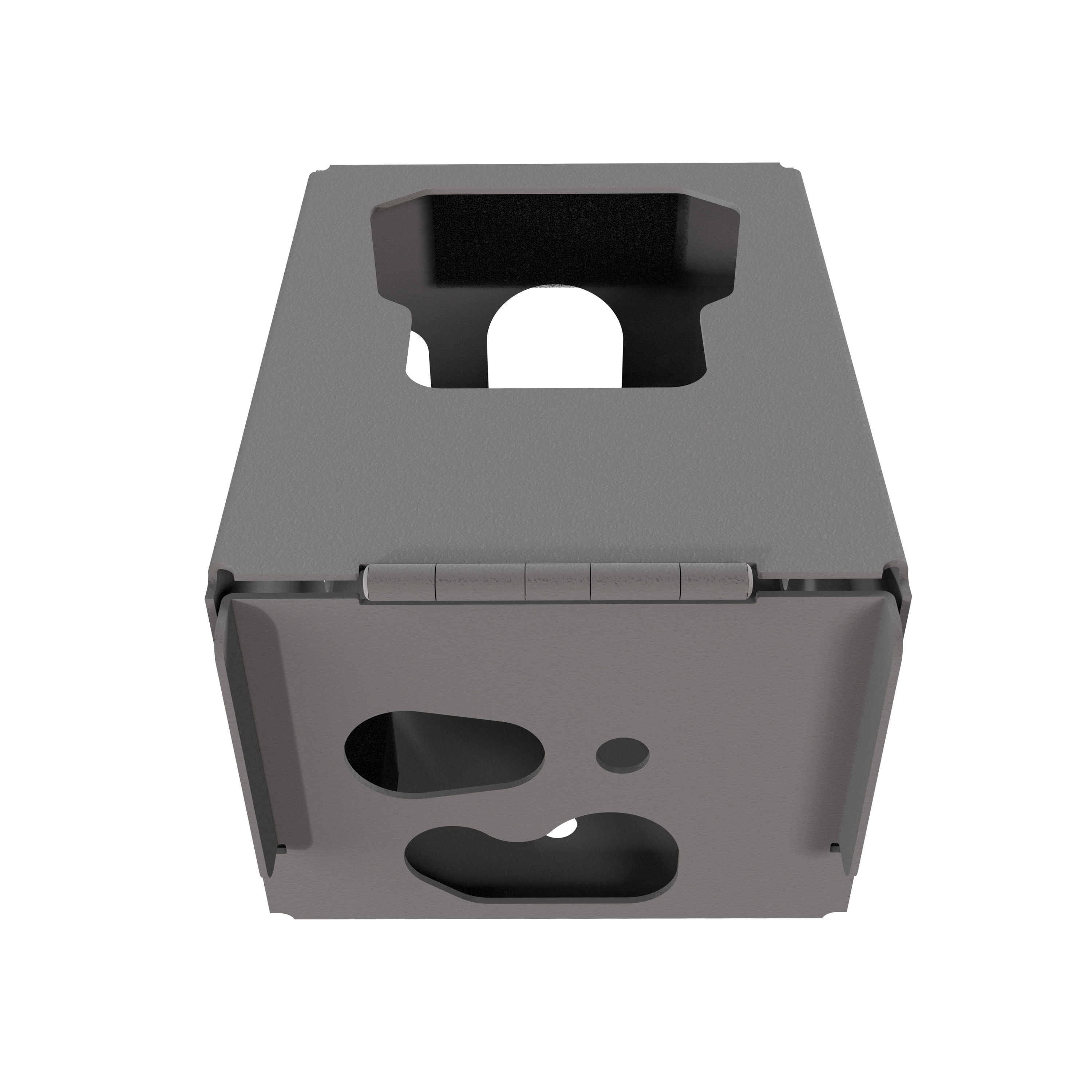

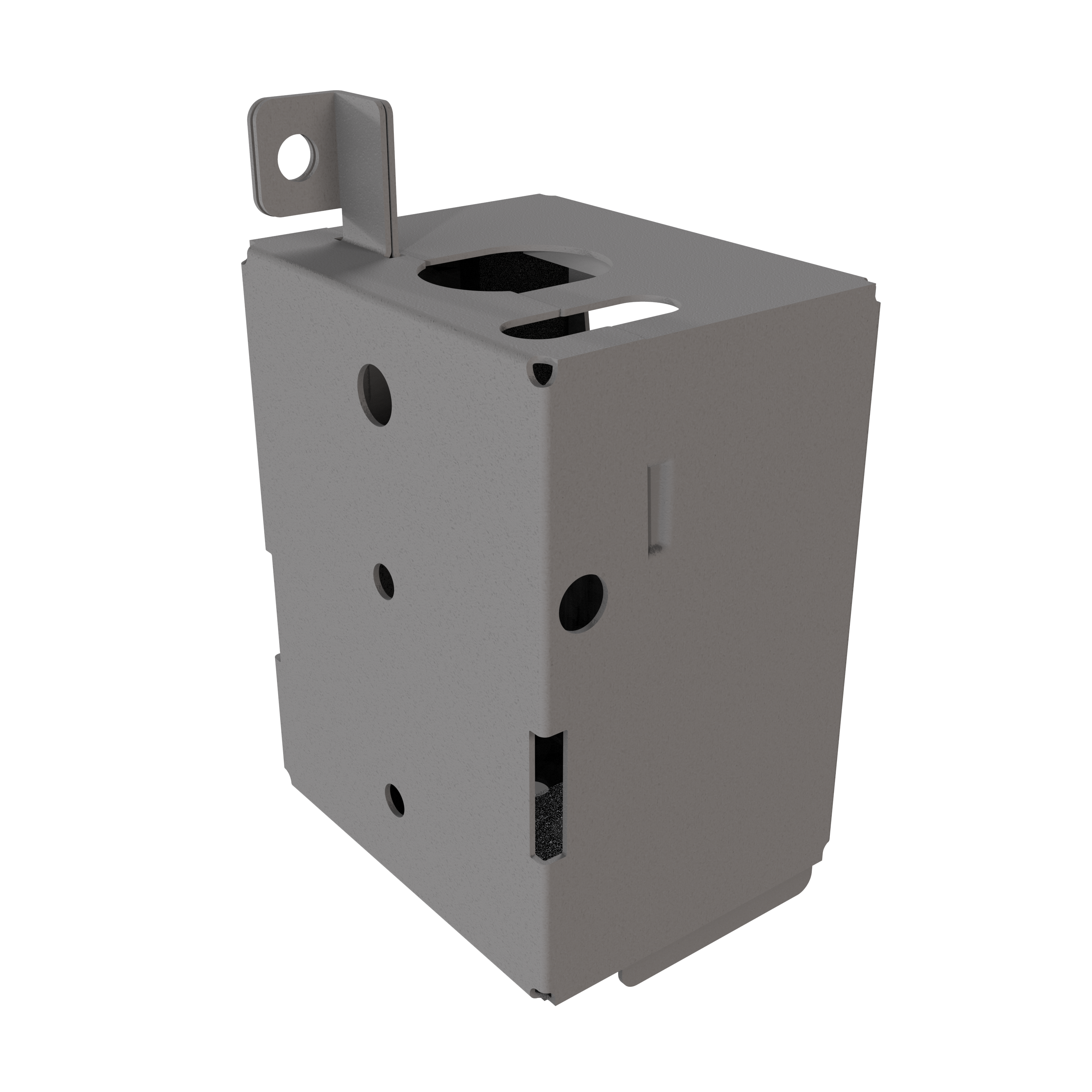

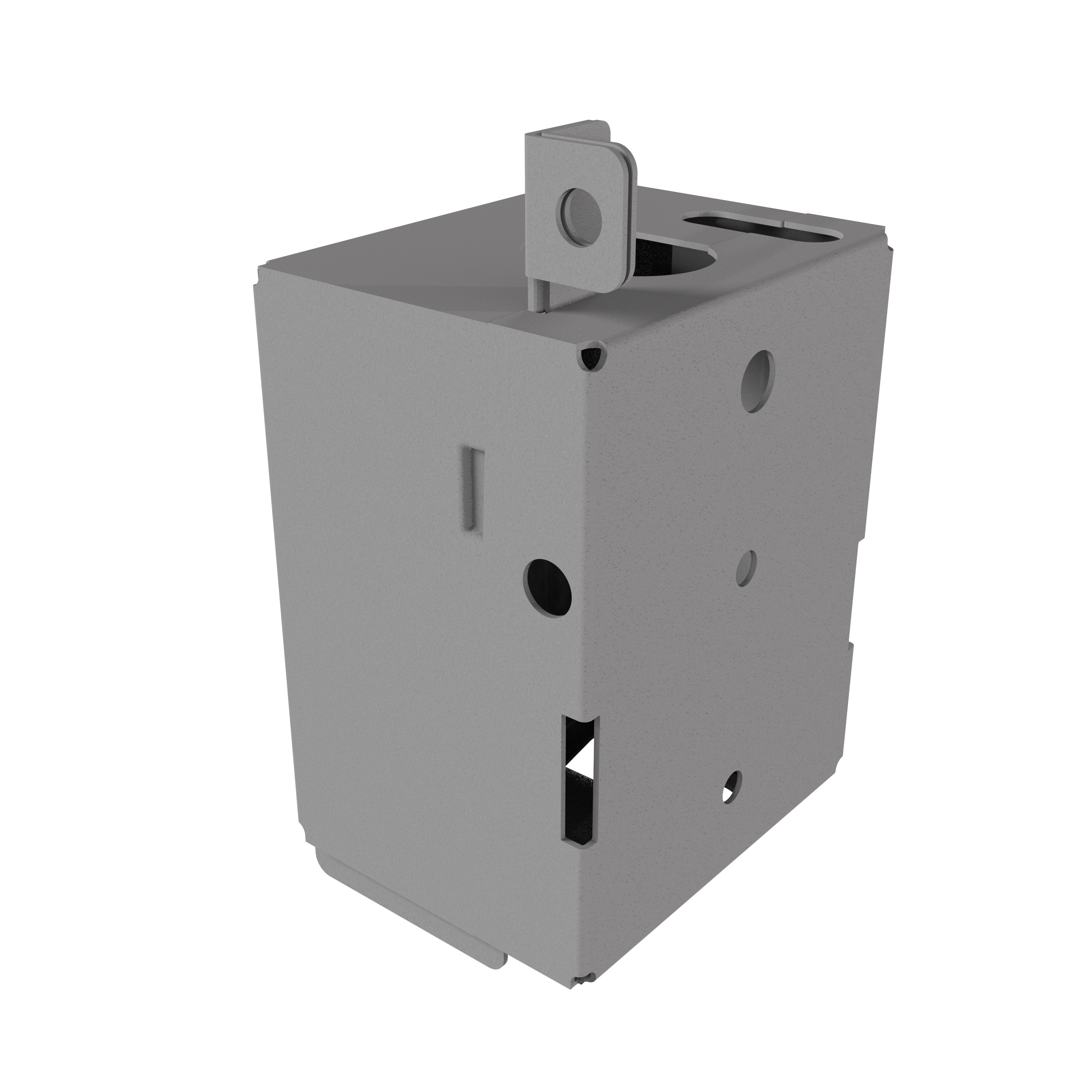

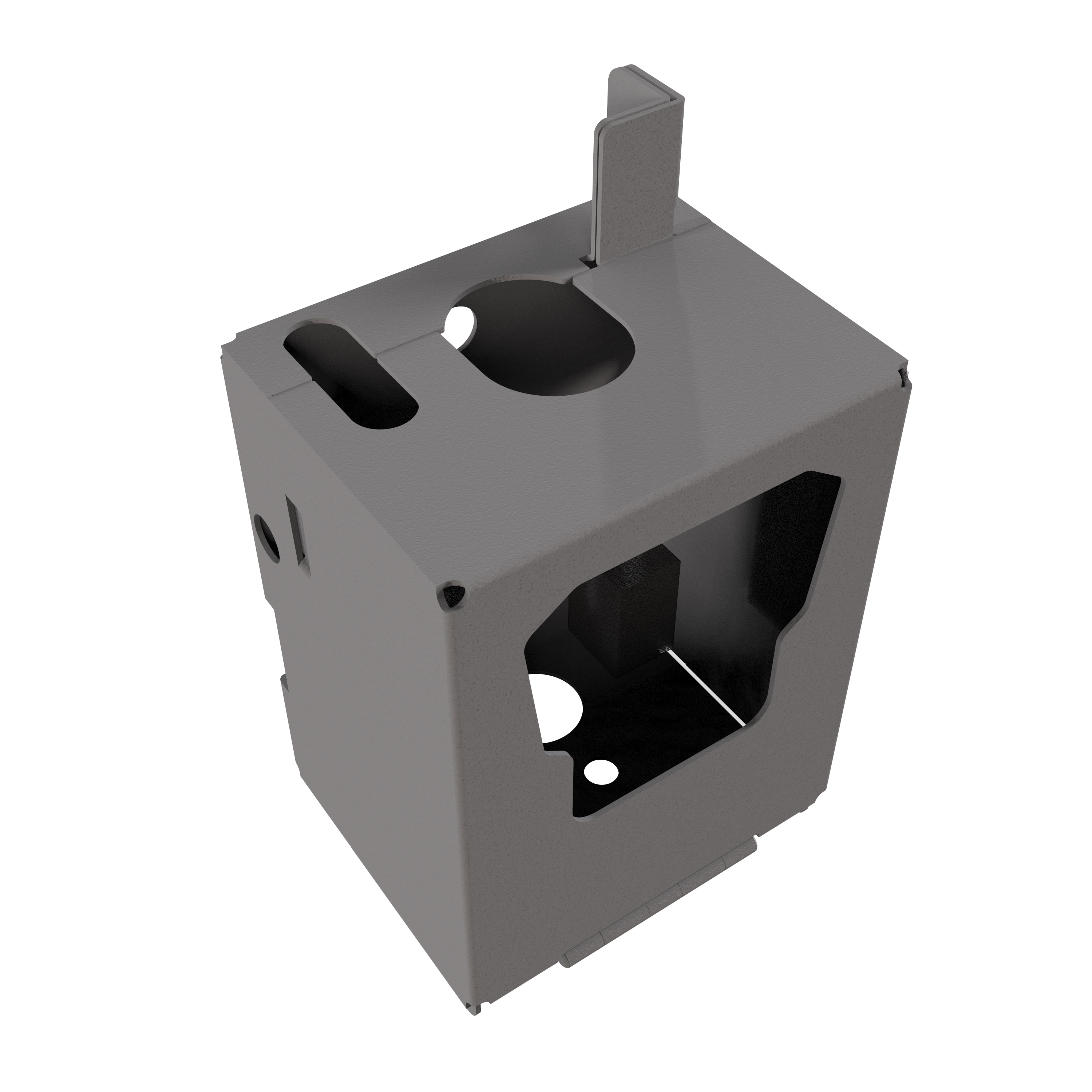

The EDGE Series Security Box II is a heavy-duty steel security enclosure designed to deter theft and vandalism of compatible EDGE series trail cameras. It mounts to a tree using straps or a mounting arm and locks with a standard cable lock or padlock.

What's In The Box

• EDGE Series Security Box II enclosure
• Mounting hardware
• Lock hasp (lock sold separately)

Compatible Cameras

The EDGE Series Security Box II is compatible with compatible EDGE series trail cameras. Refer to the product packaging or the Moultrie website to confirm compatibility with your specific camera model before purchasing.

How To Set Up

1. Select a suitable tree or post at your desired camera location.
2. Position the security box at your desired mounting height, typically 3–5 feet off the ground and angled slightly downward toward the target area.
3. Attach the security box to the tree using the included mounting hardware.
4. Ensure the box is firmly secured and does not wobble.

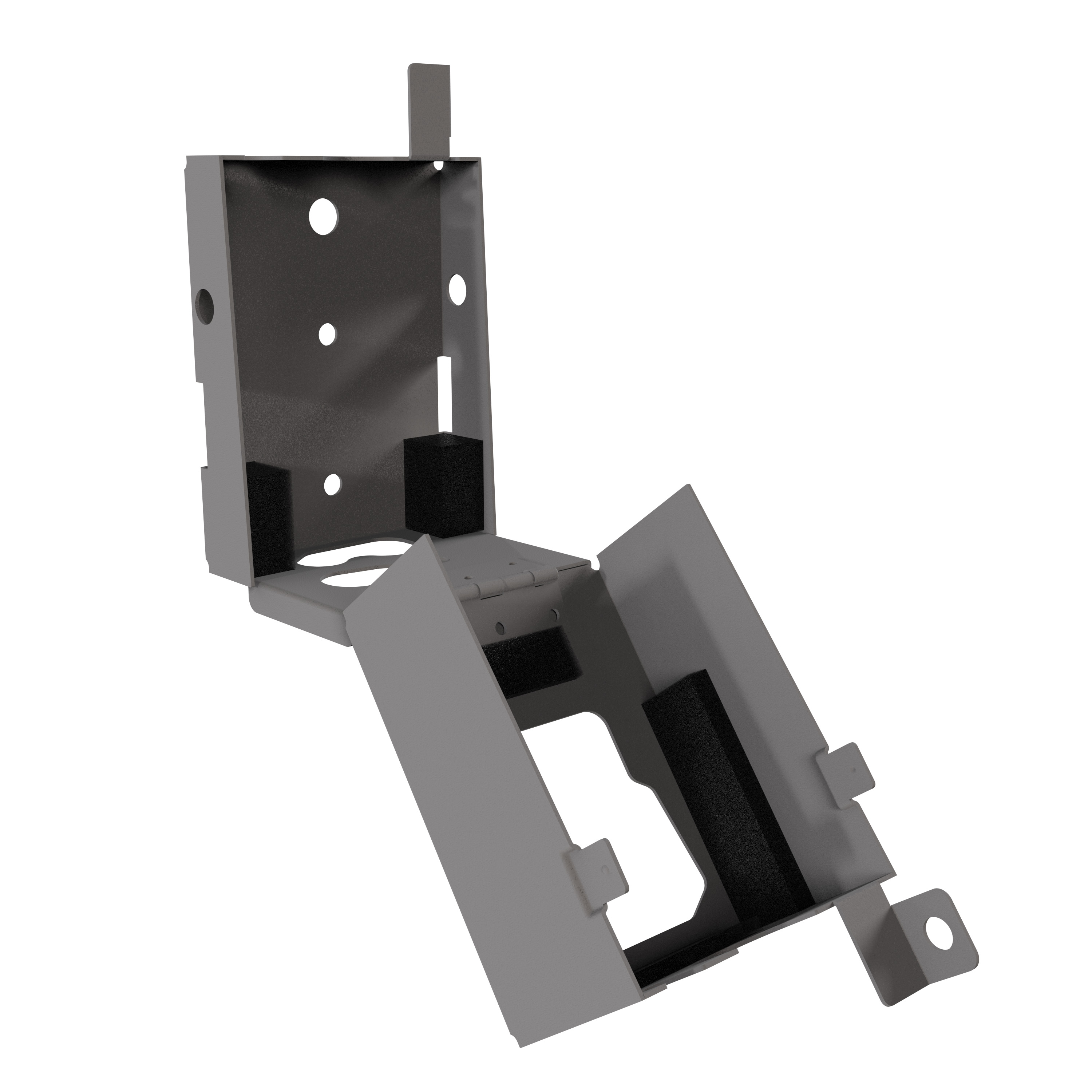

5. Open the security box door and insert your compatible EDGE series trail camera into the enclosure.
6. Align the camera lens with the opening in the front of the box.
7. Ensure the camera is fully seated and stable inside the enclosure.
8. Route any cables (power, external antenna) through the designated cable ports if applicable.
9. Close the security box door and secure it with a padlock or cable lock through the lock hasp.
10. Test the lock before leaving the field to confirm it is engaged.
11. Power on the camera and confirm normal operation through the Moultrie Mobile app.

Usage Tips

• Use a high-quality, weather-resistant padlock for maximum security.
• Check cable and lock periodically for signs of tampering or corrosion.
• Ensure the camera lens is clean and unobstructed inside the enclosure to maintain image quality.
