Not sure if this is your device? This article is for the EDGE 4 cameras (Edge 4 NW & Edge 4 First Lite). Double-check this info or click here to visit our "Identify My Device" page before you continue.
Your EDGE 4 uses a passive infrared (PIR) sensor — it fires when it detects heat movement. Wind-blown vegetation, sunlight, and shadows all count as "movement" to the sensor. Here's how to cut down on empty photos.

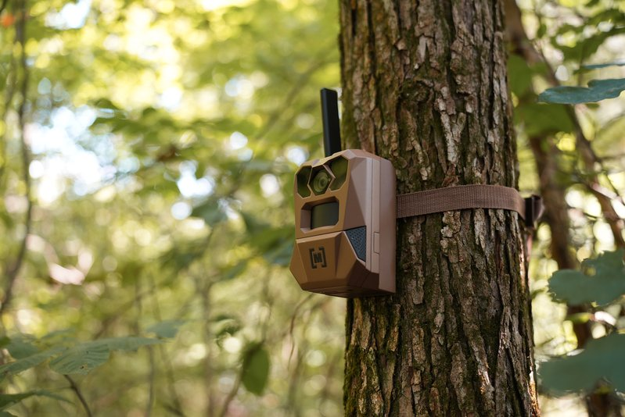

1. Stabilize the Mount
Strap the camera to a large, stable tree that won't sway in the wind. A swaying camera = constant false triggers.
2. Face North (or South)
East or west placement puts the rising/setting sun directly in the sensor's path, causing thermal spikes. North is best.
3. Set the Camera at the Right Height
Mount 3–4 feet off the ground on a stable surface. Too low = small animals; too high + angled down = shadow and ground temperature false triggers.
4. Clear Vegetation From the View
Remove all grass, twigs, or small branches in front of the camera before you leave. Even a single twig blowing in the frame will trigger shots all night.
5. Adjust Detection Settings
- Lower PIR Sensitivity to Medium or Low.
- Make sure the camera is in Photo mode, not Multi-Shot or Video.
- The EDGE 4's Smart Zone and Smart Capture features can help filter out non-animal triggers check that these are configured in your camera settings.
6. Still Getting False Triggers? Run the Box Test
This test confirms whether the camera itself is misfiring:
- Set upload frequency to Immediate.
- Place the camera inside a completely sealed, opaque box, facing the longest stretch inside.
- Power on and close the box. Leave it undisturbed for one full night.
- If no photos are taken the camera is fine; the environment was the trigger.
- If photos are taken inside the sealed box contact us with the images.
Still need help? Chat with us at support.moultriemobile.com or call 1-844-908-1219.
