600LB Metal Broadcast Feeder – Setup & Use

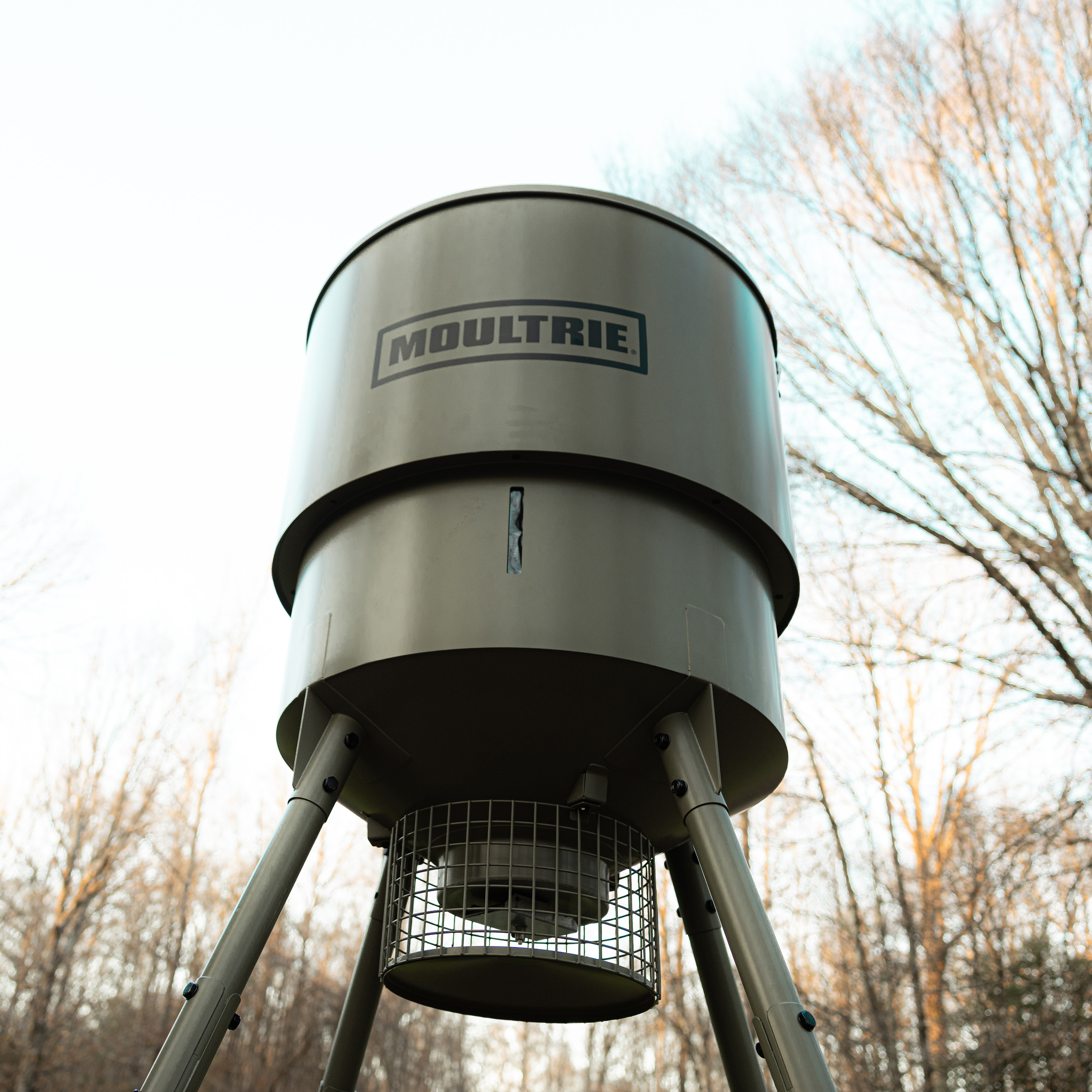

600LB Metal Broadcast Feeder (SKU/Product #: MFG-15130)

Congratulations on your new 600LB Metal Broadcast Feeder! This feeder holds up to 600 lbs. of feed and pairs with the Moultrie app over Bluetooth for remote schedule control. Follow the steps below to get it assembled, connected, and programmed.

Step 1 – Assemble the Feeder

1. Unfold and secure the powder-coated steel legs. Use the staking holes for added ground stability (stakes not included).
2. Attach the varmint cage around the spinner plate. The cage deters hogs, raccoons, and other pests while still allowing easy timer access.
3. Confirm the clear viewing window is properly seated for easy feed-level monitoring.

For full hardware assembly, always refer to the printed assembly guide and assembly video included with your feeder.

Step 2 – Install Battery

1. Install a fully charged Moultrie 12V Rechargeable Feeder Battery or equivalent 12V Lead Acid/SLA battery (sold separately) in the concealed battery compartment.
2. Connect the RED wire to the POSITIVE (+) terminal and the BLACK wire to the NEGATIVE (−) terminal.

Step 3 – Connect the Solar Panel

1. Always connect the battery to the feeder FIRST, then plug in the included solar panel.
2. Position the solar panel to receive maximum direct sunlight throughout the day.
3. Double-check that the solar panel, antenna, battery, and motor are all connected to the timer -- every component needs to stay connected for the feeder to run correctly.

Step 4 – Fill the Hopper

1. Open the lid and fill with up to 600 lbs of feed. Moultrie recommends ¼" whole kernel corn for optimal dispensing. Fill height is 5.5 feet.
2. Press the lid firmly and twist to lock. A loose lid allows moisture in and can cause clogging.

Step 5 – Connect to the Moultrie App (Bluetooth)

A subscription is not required to control this feeder over Bluetooth. The app is not required either, but it's recommended -- it's the only way to use scheduling, on-demand feeds, and Bluetooth diagnostics.

1. Download the Moultrie app and create an account before you try to add the feeder. An account is required before the feeder can be added via Bluetooth.
2. Enable Bluetooth in your phone's system settings (not just an in-app toggle), then open the Moultrie app.
3. Power on the timer. It should automatically appear in the app's available devices list.
4. Face the timer's external antenna toward yourself while pairing -- this gets you the full Bluetooth range of up to 100 yards.
5. Tap the feeder in the app to add it to your account. Once added, you're ready to build a feed schedule from your phone.

Want to sync this feeder with a trail camera? Moultrie Connect lets you integrate it with a compatible EDGE camera (EDGE 3, EDGE 3 Pro, EDGE 4, and EDGE 4 Pro). A cellular subscription is only required if you want to use Moultrie Connect -- it is not required for Bluetooth control through the app.

Step 6 – Program the Universal Digital Timer III (UDT3)

The Universal Digital Timer III (UDT3) supports up to 10 feed times per day, each with a run duration of up to 60 seconds. You can program it directly on the timer, or from the Moultrie app once connected.

Set Current Time

Press PROGRAM → SET CURRENT TIME. Use UP/DOWN for hours, RIGHT for minutes. Press PROGRAM to advance.

Set Current Day

Press PROGRAM until Set Current Day. Press LEFT/RIGHT to select today.

Set Feed Time

Press PROGRAM to reach the desired Feed Timer. Press DOWN to flash the time, PROGRAM to edit. Factory default: 7 AM and 6 PM at 6 seconds each.

Set Days of Week

After setting the feed time, press UP to flash days. PROGRAM to edit. LEFT/RIGHT highlights a day; DOWN disables, UP enables. Press PROGRAM to save.

Set Run Duration

Press DOWN + LEFT until RUN DURATION flashes. PROGRAM to edit. UP/DOWN sets a duration of up to 60 seconds.

Step 7 – Test the Feeder

1. Press BACK to reach the Main Menu, then TEST to enter Test Mode.
2. Use UP/DOWN to adjust test duration, PROGRAM twice to confirm. A 5-second countdown precedes the spinner activation.
3. You can also trigger a test feed remotely from the Moultrie app once the feeder is paired.
