Not sure if this is your device? This article is for the 11W Solar Power Pack (SKU/Product #: MMA-14286). Double-check this info or visit our "Identify My Device" page before you continue.

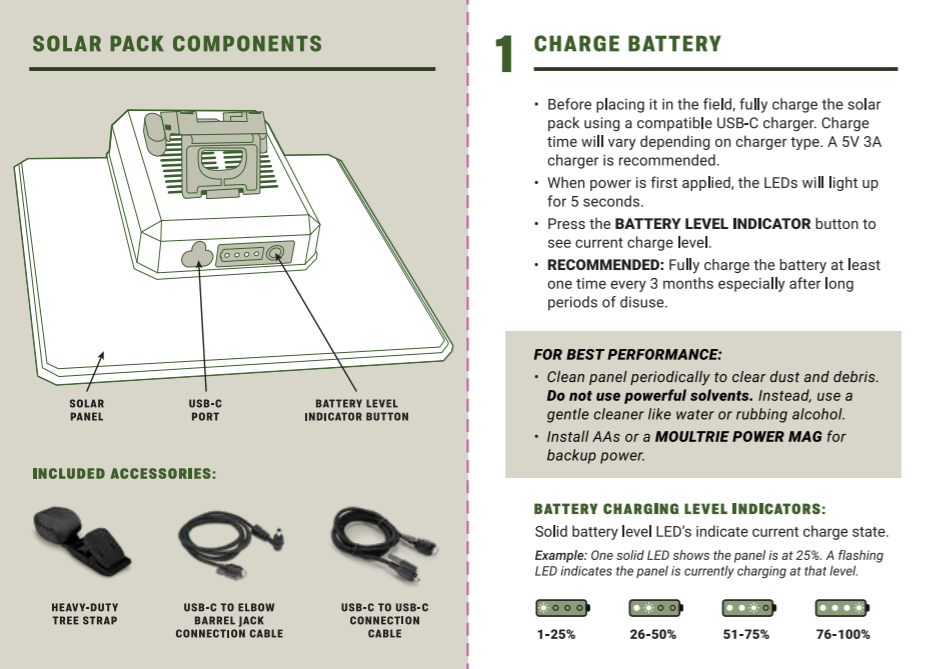

What's In The Box
- 11W Solar Power Pack panel
- USB-C charging/power cable
- Adjustable mounting strap

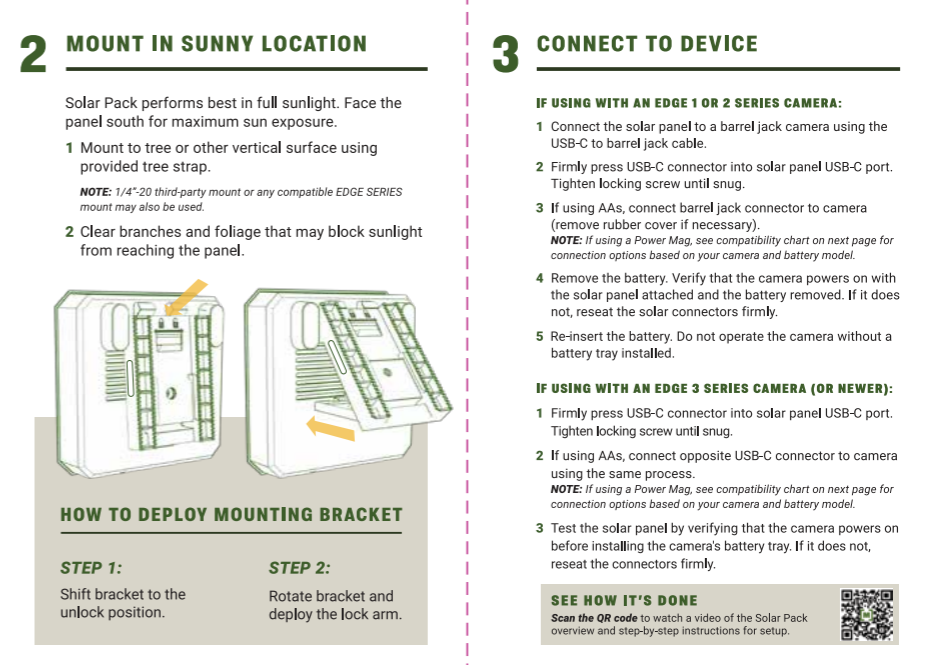

How To Set Up
Follow the steps below to connect your 11W Solar Power Pack to your trail camera.

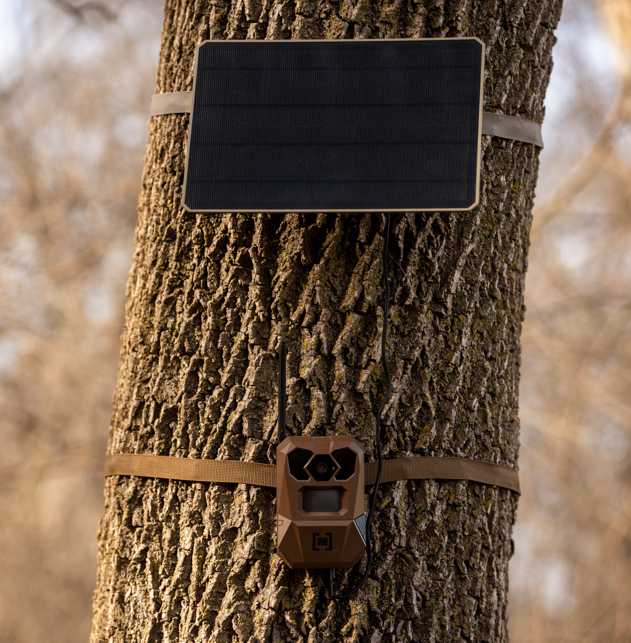

- Position the solar panel in a location that receives several hours of direct sunlight per day, ideally south-facing.
- Connect the included USB-C cable to the output port on the solar panel.
- Connect the other end of the USB-C cable to the USB-C port on your compatible trail camera.
- Secure the panel using the adjustable mounting strap or a separately purchased mounting arm.
- Avoid placing the panel under branches or obstructions that create shade during peak sun hours.
- Angle the panel toward the sun flat mounting reduces charging efficiency.
- Confirm the camera recognizes the solar input by checking the battery/power indicator in the Moultrie Mobile app.
LED Indicator Guide
Press the Check Battery button on the solar panel to view battery status:
- Green (solid): Fully charged or charging normally
- Green (flashing): Currently charging via sunlight
- Red: Low battery charge via USB-C cord
- No light: Battery fully depleted charge via cord for at least 4 hours
Charging Tips
- The 11W Solar Power Pack supplements camera power direct cord charging is fastest.
- Solar output depends on weather, season, and panel angle. On cloudy days, output is reduced.
- Use the included USB-C cable or one rated at minimum 2A / 18W.
- Allow a full charge cycle (4–14 hours) before first use.
